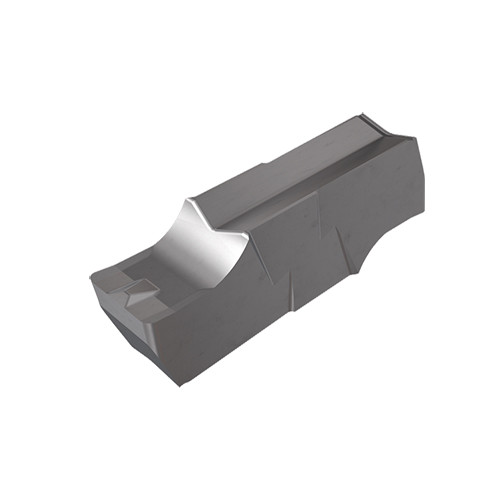

GIFI 5.28-0.20 IC8250
Grooving Insert; 0.208″ CW × 0.61″ Max Depth ; Carbide ; IC8250 ; TiCN+Al2O3+TiN

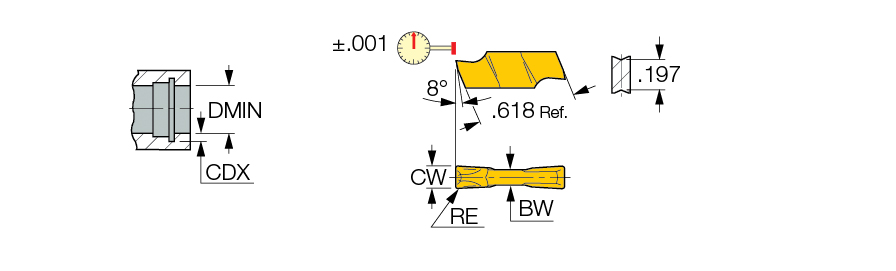

| Cutting Width (CW) | 0.208″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0079″ | Application | | Int. Grooving | Internal Groove Milling | Side Slotting | T Slotting | |
| Cutting Depth Maximum (CDX) | 0.61″ | Applicable Material | | Steel | Stainless Steel | |
| Clearance Angle Major (AN) | 8 Degrees | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.618″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.787″ | Tool Type | Groove-Turn Precision Inserts |
| Feed | 0.0051 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC8250 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
Product Features
| Family Description | Precision double-ended inserts for internal grooving and recessing at low-to-medium feeds. Min. bore diameter .787″. | Country of Origin | Israel |
| Remarks | DMIN for internal applications = .787 |
Shipping Info
Package Weight
0.014
