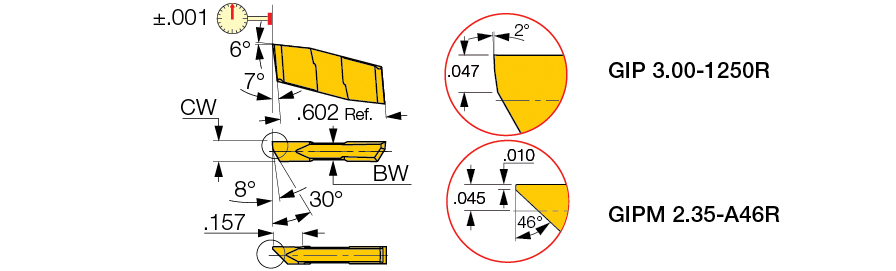

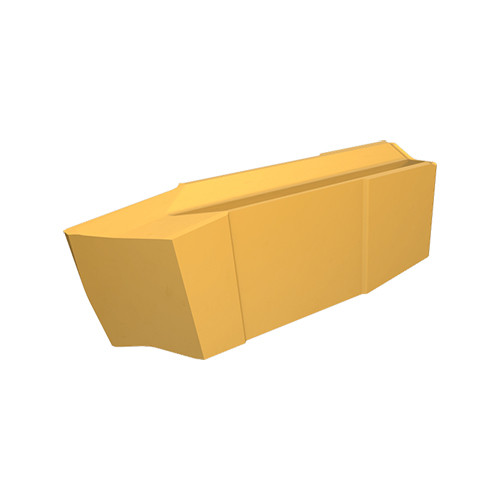

GIP 3.00-1250L IC328
| Cutting Width (CW) | 0.118″ | Application | | Ext. Back Turning | |
| Corner Radius (RE) | 0″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 7 Degrees | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.602″ | Measurement Type | Inch |
| Insert Rake Angle (GAN) | 6 Degrees | Tool Type | Groove-Turn Precision Inserts |
| Feed | 0.0059 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC328 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Precision ground back turning inserts, for external machining on Swiss-type and automatic machines | Country of Origin | Israel |
| Remarks | Toolholder seat needs to be modified according to insert profile to ensure clearance For grooving, reduce cutting speed by 30% and feed by 50% |
Shipping Info
Package Weight
0.010
