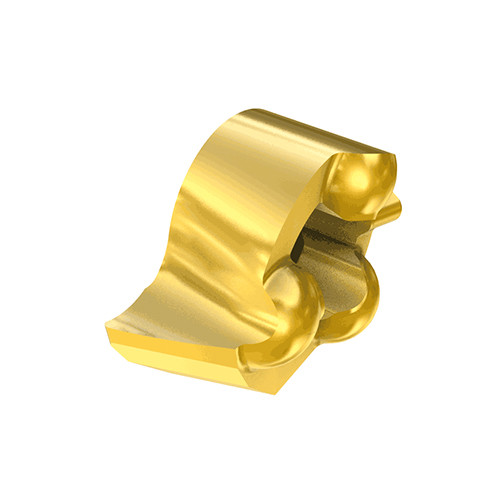

GIQR 8-A18-0.15 IC528
Grooving Insert; 0.118″ CW × 0.063″ Max Depth ; Carbide ; IC528 ; TiCN+TiN

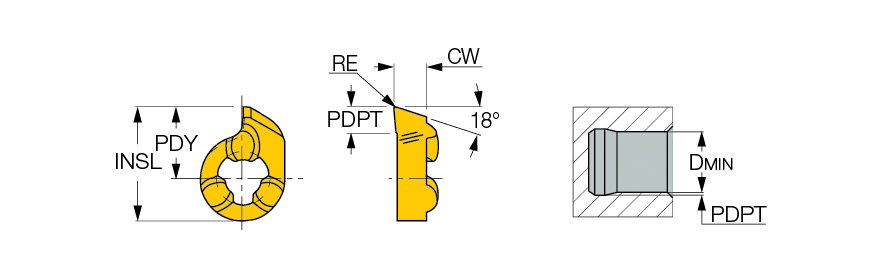

| Cutting Width (CW) | 0.118″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0059″ | Application | | Int. Boring and Profiling | Int. Groove & Turn | |
| Profile Distance EY (PDY) | 0.181″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.063″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 18 Degrees | Chip Breaker Type | M |
| Thread Pitch Maximum (TPX) | 0.344″ | Insert Style | GIQR |
| Insert Length (INSL) | 0.299″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.307″ | Tool Type | Groove-Turn Precision Inserts |
| Feed | 0.002 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC528 | Cutting Edge Length (L) | 0.401″ |
| Shape | Grooving | Height | 0.344″ |
Product Features
| Family Description | CHAMGROOVE internal boring and profiling inserts | Country of Origin | Israel |
Shipping Info
Package Length
3.56000
Package Width
1.32000
Package Height
.24000
Package Weight
0.002
