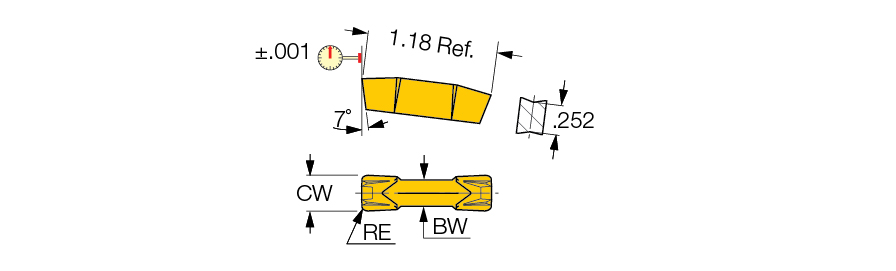

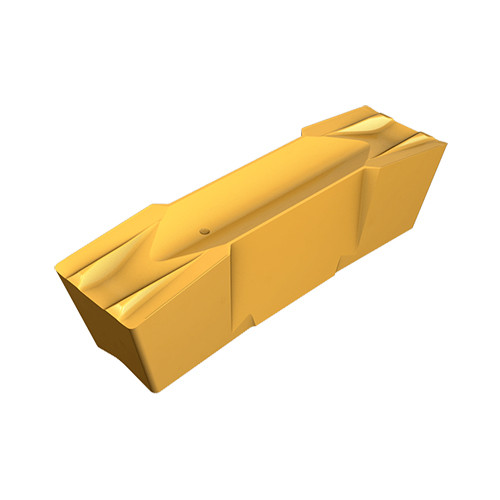

GIF 8.00-0.80 IC20
Grooving Insert; 0.315″ CW × 1.063″ Max Depth ; Carbide ; IC20 ; Uncoated
| Cutting Width (CW) | 0.315″ | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Grooving | |
| Corner Radius (RE) | 0.031″ | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 1.063″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Cutting Position | External |
| Thread Pitch Maximum (TPX) | 0.344″ | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Insert Length (INSL) | 1.181″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 2.559″ | Tool Type | Groove-Turn Precision Inserts |
| Feed | 0.0134 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC20 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | CUT-GRIP precision ground, double-ended inserts for external, internal and face grooving at low to-medium feeds. | Country of Origin | Israel |
| Remarks | DMIN for internal machining = 2.56 |
Shipping Info
Package Weight
0.051
