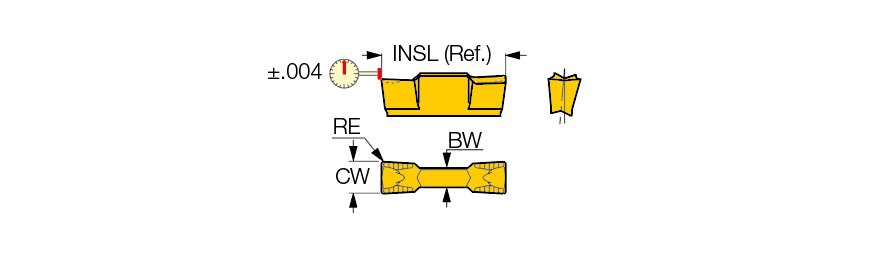

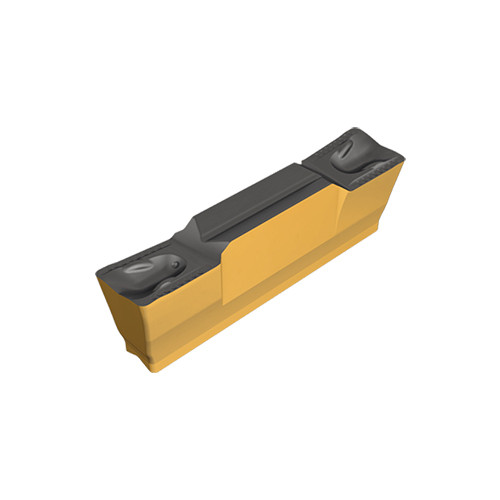

GRIP 6008Y IC908
Grooving Insert; 0.236″ CW ; Carbide ; IC908 ; TiAlN
| Cutting Width (CW) | 0.236″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0315″ | Cutting Position | External |
| Thread Pitch Maximum (TPX) | 0.344″ | Axial Groove Outside Diameter Minimum (DAXN) | 0.86″ |
| Insert Length (INSL) | 0.748″ | Number of Teeth | 2 |
| Feed | 0.0165 inch/rev | Measurement Type | Inch |
| Coating | TiAlN | Tool Type | Groove-Turn Utility Inserts |
| Grade | IC908 | Threads per Inch (TPI) | 8 |
| Shape | 90° Rectangular | Body Material | Carbide |
| Cutting Edge Material | Carbide | Cutting Edge Length (L) | 0.401″ |

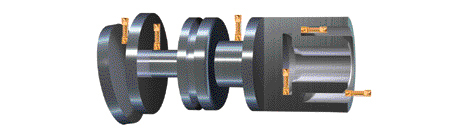

| Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Face Grooving | Int. Groove & Turn | Int. Grooving | Parting | | Height | 0.344″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Double-ended inserts, for turning & grooving in external, internal and face applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.017
Related Documentation
