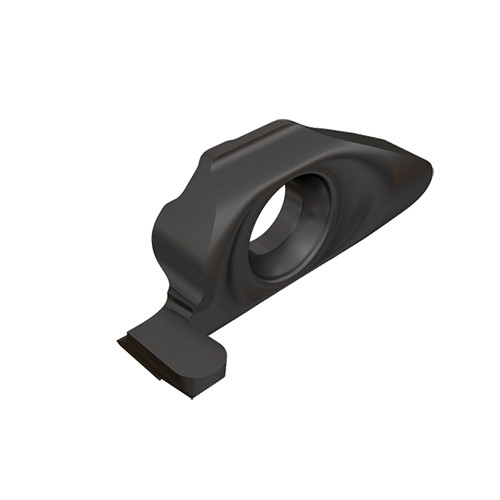

MIGR 8-2.00-0.10 IC908
Grooving Insert; 0.079″ CW × 0.071″ Max Depth ; Carbide ; IC908 ; TiAlN

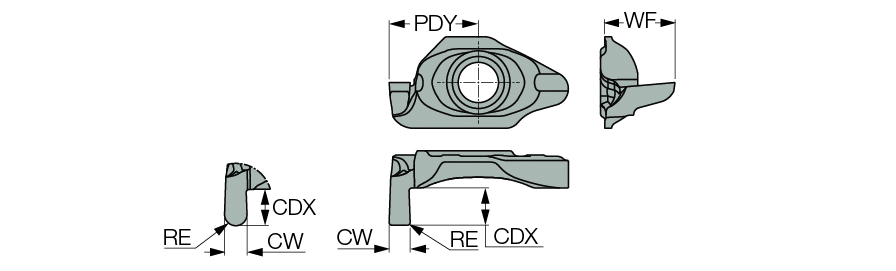

| Cutting Width (CW) | 0.079″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | |
| Corner Radius (RE) | 0.0039″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Profile Distance EY (PDY) | 0.268″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.071″ | Cutting Position | External |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.35″ | Tool Type | Groove-Turn Precision Inserts |
| Feed | 0.0039 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | MINCUT internal shallow grooving inserts in straight and full radius configurations. | Country of Origin | Israel |
Shipping Info
Package Weight
0.006
