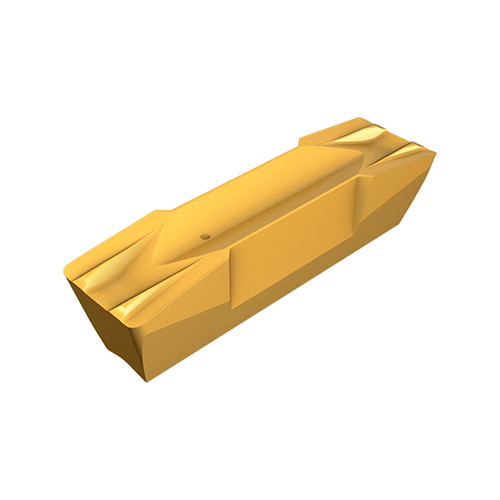

GIFG 8.00E-0.80 IC20
Grooving Insert; 0.315″ CW × 0.984″ Max Depth ; Carbide ; IC20 ; Uncoated

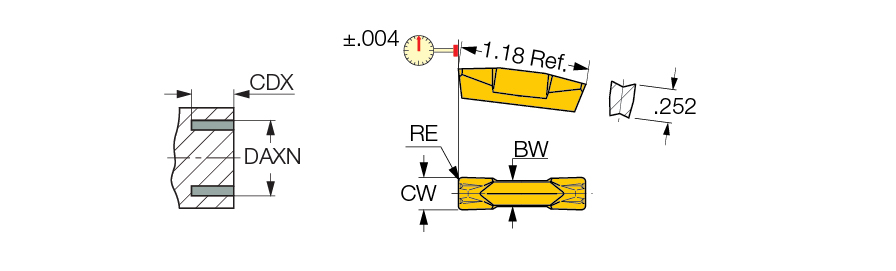

| Cutting Width (CW) | 0.315″ | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Corner Radius (RE) | 0.031″ | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.984″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Axial Groove Outside Diameter Minimum (DAXN) | 1.97″ |
| Insert Length (INSL) | 1.181″ | Measurement Type | Inch |
| Feed | 0.0098 inch/rev | Tool Type | Groove-Turn Precision Inserts |
| Coating | Uncoated | Threads per Inch (TPI) | 8 |
| Grade | IC20 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
Product Features
| Family Description | Inserts for deep face grooving and turning. Dmin 2″, Tmax 1″. | Country of Origin | Israel |
Shipping Info
Package Weight
0.047
