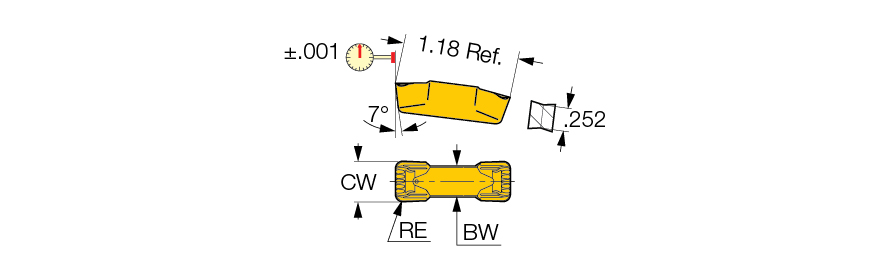

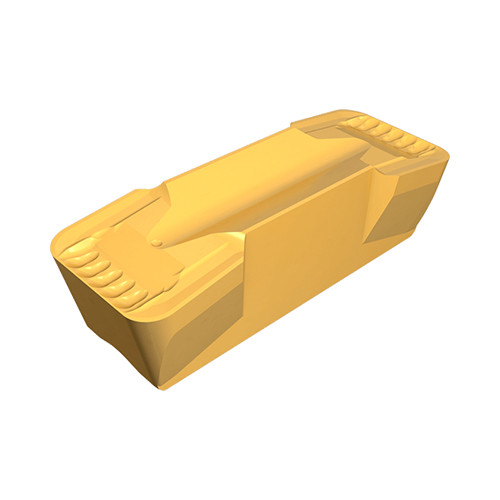

GDPY 10.00-0.80 IC830
Grooving Insert; 0.394″ CW × 1.102″ Max Depth ; Carbide ; IC830 ; AlTiN+TiN
| Cutting Width (CW) | 0.394″ | Application | | Ext. Grooving | Ext. Grooving & Turning | |
| Corner Radius (RE) | 0.031″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 1.102″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Cutting Position | External |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Length (INSL) | 1.181″ | Tool Type | Groove-Turn Precision Inserts |
| Feed | 0.0256 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Precision, double-ended inserts for external heavy-duty grooving and turning. | Country of Origin | Israel |
Shipping Info
Package Length
5.24000
Package Width
2.90000
Package Height
.48000
Package Weight
0.065
