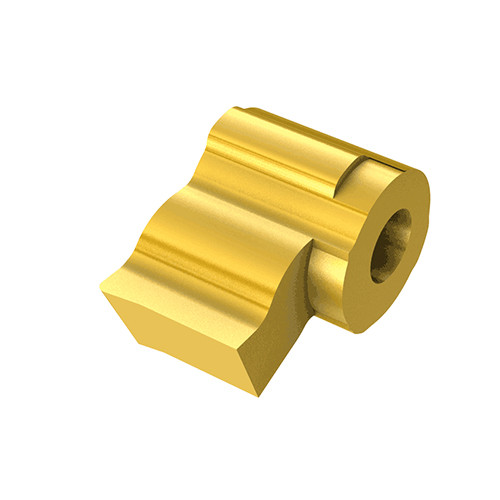

UMGR 4.0-0.1 IC508
Grooving Insert; 0.064″ CW ; Carbide ; IC508 ; TiCN+TiN

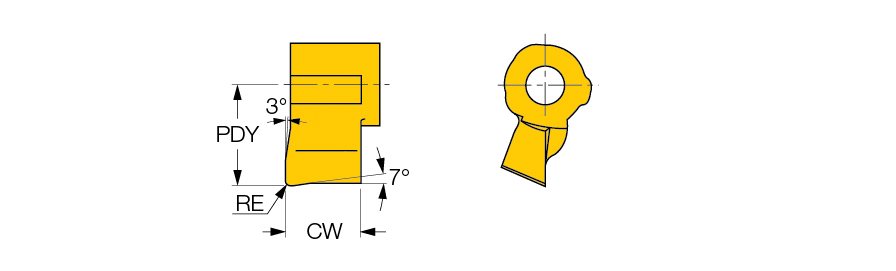

| Cutting Width (CW) | 0.064″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0039″ | Cutting Direction (HAND) | Right Hand |
| Profile Distance EY (PDY) | 0.063″ | Chip Breaker Type | M |
| Clearance Angle Major (AN) | 7 Degrees | Insert Style | UMGR |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.157″ | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiCN+TiN | Threads per Inch (TPI) | 8 |
| Grade | IC508 | Body Material | Carbide |
| Shape | U | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
| Application | | Int. Boring and Profiling | |
Product Features
| Family Description | Miniature indexable inserts, used for .157″ min. turning diameter. Designed for fast, easy and secure indexing. | Country of Origin | Israel |
