1/2X1X3 4FL ALCRNX

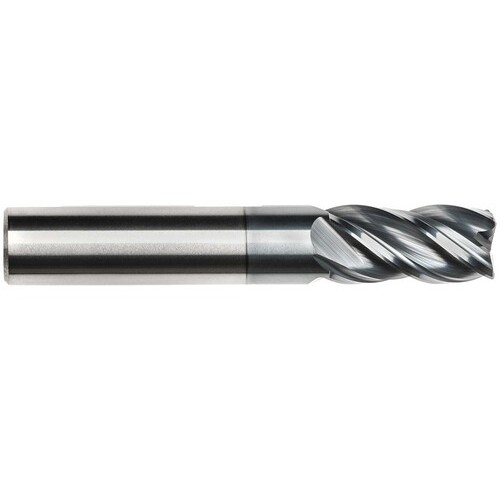

SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 0.015″ RE ; 0.015″ RE ; 4 FL ; 1″ LBS ; Carbide ; AlCrNX ; Series M924-CR
| Cutting Diameter (DC) | 1/2″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Usable Length (LU) | 1″ |
| Depth of Cut Maximum (APMX) | 1″ | Corner Radius (RE) | 0.015″ |
| Overall Length (OAL) | 3″ | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlCrNX | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 4 | Series/List # | M924-CR |
| Flute Helix Angle (FHA) | Variable | Corner Radius (RE) / Chamfer Width (CHW) | 0.015″ |
| Shank Type | Round |
Product Features
| Remarks | •Top of its class for aggressive slotting, peripheral milling and plunging in ALL ferrous materials •Advanced coating and tool design improves tool life exponentially •Unique vibration dampening geometry for chatter-free machining •38° Helix, round shank | Country of Origin | USA |
Shipping Info
Package Length
3.50000
Package Width
.70000
Package Height
.70000
Package Weight
0.276
