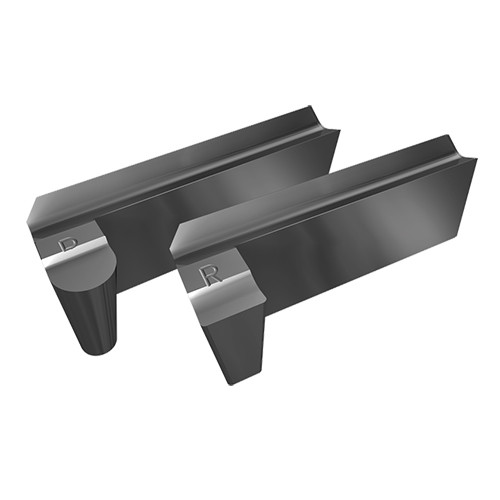

LPGIL 12-8.5-3T5PR IC907
Grooving Insert; 0.118″ CW × 0.177″ Max Depth ; Carbide ; IC907 ; TiAlN

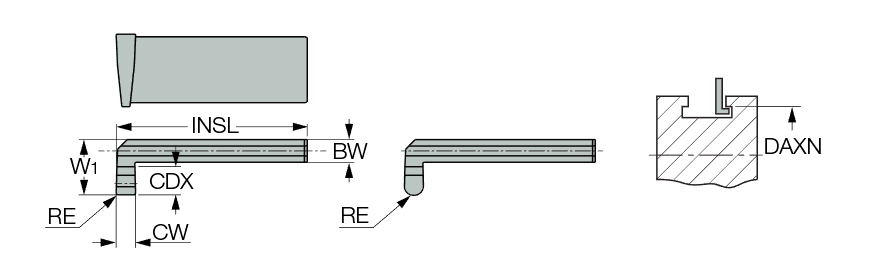

| Cutting Width (CW) | 0.118″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.012″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.177″ | Axial Groove Outside Diameter Minimum (DAXN) | 7.87″ |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Length (INSL) | 1.181″ | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiAlN | Threads per Inch (TPI) | 8 |
| Grade | IC907 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
| Application | | Face and Radial Grooving | Radial and Face Grooving | |
Product Features

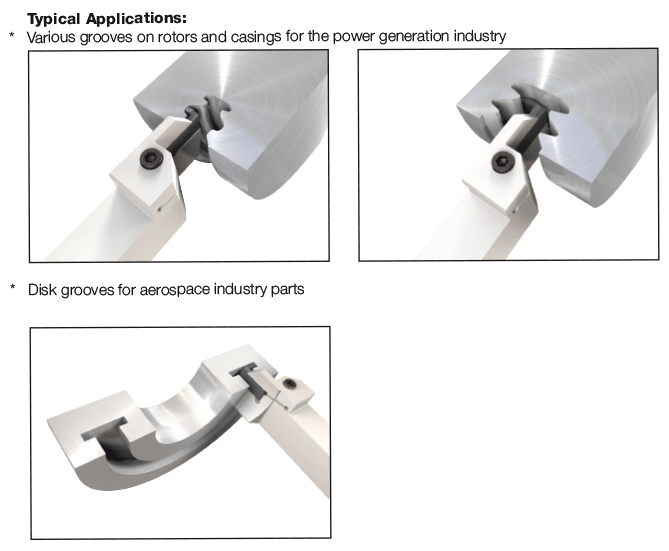

| Family Description | Inserts for grooving L type grooves. Used for axial grooves inside radial grooves and for radial grooves inside axial grooves. | Country of Origin | Israel |
Shipping Info
Package Weight
0.055
