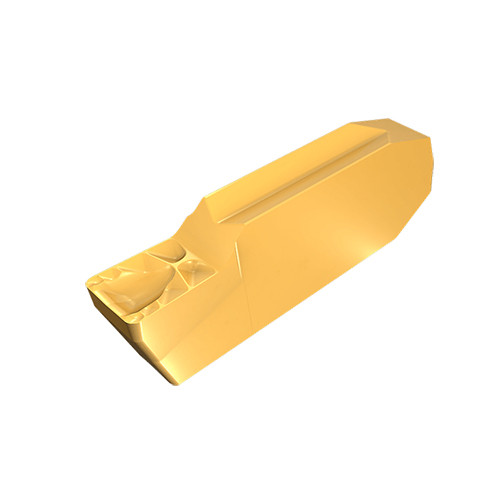

GIMIY 404 IC808
Grooving Insert; 0.157″ CW ; Carbide ; IC808 ; TiAlN+AlTiN+TiN

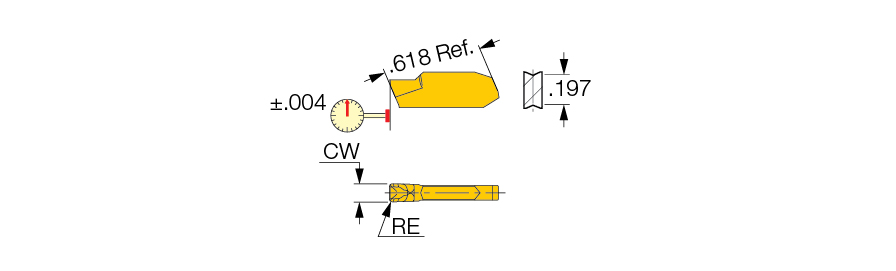

| Cutting Width (CW) | 0.157″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.016″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Chip Breaker Type | Y |
| Insert Length (INSL) | 0.618″ | Cutting Position | External |
| Feed | 0.0075 inch/rev | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Tool Type | Groove-Turn Utility Inserts |
| Grade | IC808 | Threads per Inch (TPI) | 8 |
| Shape | 90° Rectangular | Body Material | Carbide |
| Cutting Edge Material | Carbide | Cutting Edge Length (L) | 0.401″ |
| Application | | Int. Groove & Turn | Int. Grooving | | Height | 0.344″ |
Product Features
| Family Description | Utility inserts for internal turning and grooving. Single-ended, Y-type chipformer, low-to-medium feeds, min. bore .787″. | Country of Origin | Israel |
| Remarks | DMIN for internal applications=.787 |
Shipping Info
Package Weight
0.011
