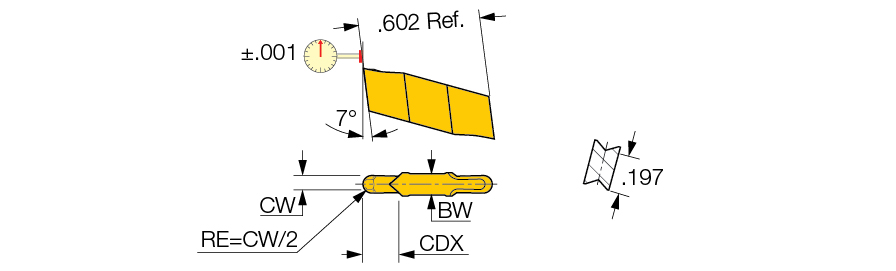

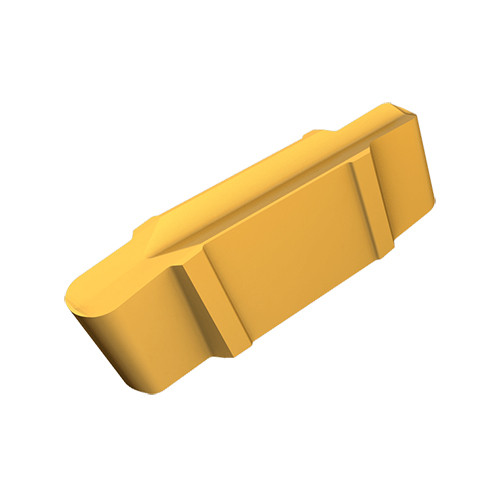

GIP 1.57-0.79 IC830
Grooving Insert; 0.062″ CW × 0.106″ Max Depth ; Carbide ; IC830 ; AlTiN+TiN
| Cutting Width (CW) | 0.062″ | Application | | Ext. Grooving | Int. Grooving (side limit) | |
| Corner Radius (RE) | 0.031″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.106″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Length (INSL) | 0.602″ | Tool Type | Groove-Turn Precision Inserts |
| Minimum Bore Diameter (DMIN) | 2.756″ | Threads per Inch (TPI) | 8 |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 | Cutting Edge Length (L) | 0.401″ |
| Shape | Parrallelogram | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Flat top precision double-ended inserts with full radius for grooving | Country of Origin | Israel |
| Remarks | DMIN for internal machining = 2.76 |
Shipping Info
Package Weight
0.006
