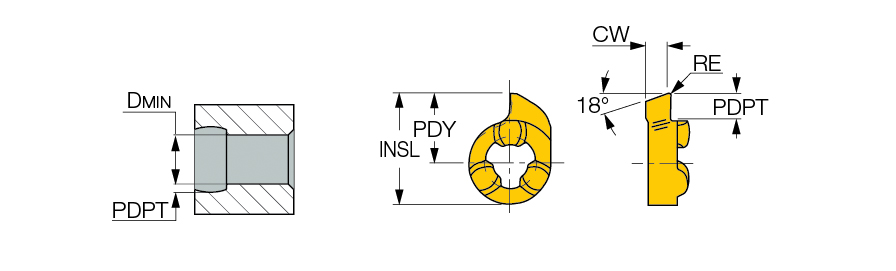

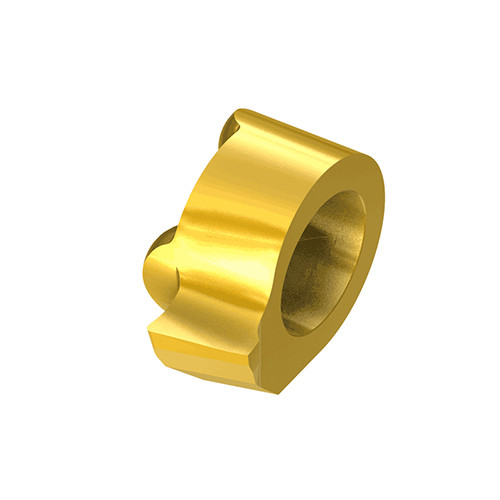

GIQR 11-B18-0.15 IC528
Grooving Insert; 0.098″ CW ; Carbide ; IC528 ; TiCN+TiN
| Cutting Width (CW) | 0.098″ | Application | | Int. Back Boring and Profiling | |
| Corner Radius (RE) | 0.006″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Profile Distance EY (PDY) | 0.264″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 18 Degrees | Chip Breaker Type | M |
| Thread Pitch Maximum (TPX) | 0.344″ | Insert Style | GIQR |
| Insert Length (INSL) | 0.421″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.433″ | Tool Type | Groove-Turn Precision Inserts |
| Feed | 0.002 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC528 | Cutting Edge Length (L) | 0.401″ |
| Shape | Grooving | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | CHAMGROOVE internal back boring and profiling inserts | Country of Origin | Israel |
Shipping Info
Package Length
4.00000
Package Width
1.50000
Package Height
.50000
Package Weight
0.006
