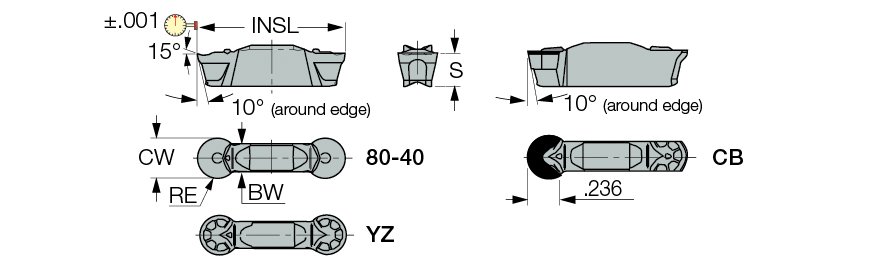

FGPA 80-40 IC4
| Cutting Width (CW) | 0.315″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.157″ | Application | | Ext. Grooving | Ext. Profiling | Ext. Turning Aluminum Wheels | Face Grooving & Turning | Int. Machining Aluminum Wheels | Int. Undercut & Turning | |
| Clearance Angle Major (AN) | 7 Degrees | Applicable Material | | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.248″ | Cutting Position | External |
| Insert Length (INSL) | 1.173″ | Measurement Type | Inch |
| Insert Rake Angle (GAN) | 15 Degrees | Tool Type | Groove Turn AL,HTA Inserts Inserts |
| Feed | 0.0283 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC4 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
Product Features

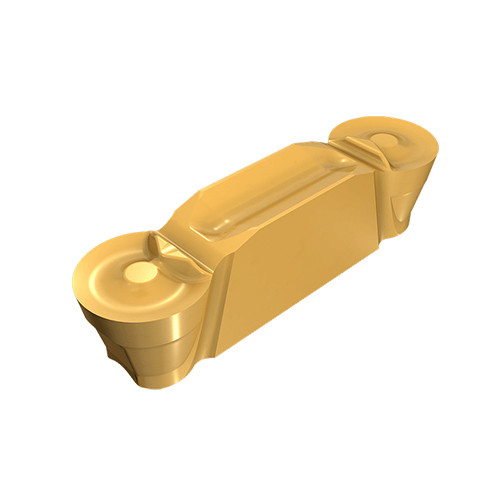

| Family Description | Double-ended full radius precision inserts with polished rake for machining aluminum and other soft materials. Used mainly for machining aluminum wheels at medium-to-high feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.042
