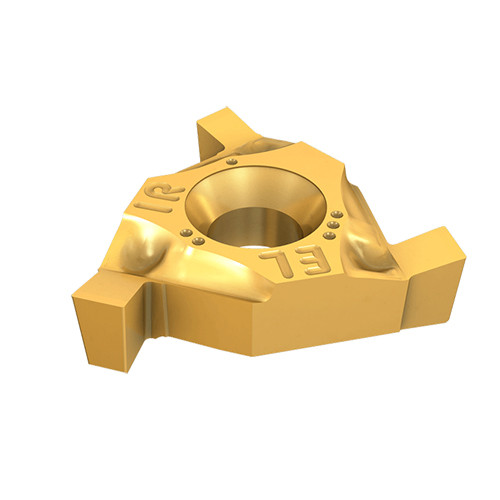

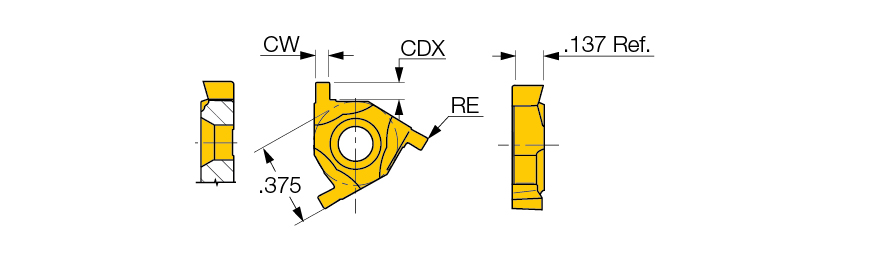

GTGA 16ER/IL 225 IC508
Grooving Insert; 0.089″ CW × 0.083″ Max Depth × 0.137″ Thickness × 3/8″ IC ; Carbide ; IC508 ; TiCN+TiN
| Cutting Width (CW) | 0.089″ | Application | | Ext. Grooving | Int. Grooving | |
| Corner Radius (RE) | 0.0039″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.083″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Thickness (S) | 0.137″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 3/8″ | Tool Type | Groove-Turn Precision Inserts |
| Feed | 0.0024 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC508 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Precision, three cutting edges, shallow grooving inserts, used for external and internal machining. | Country of Origin | Israel |
| Remarks | Inserts for right-hand external grooving can be used as left-hand internal grooving Use with anvil AE 16-0 on external tools and with anvil AI 16-0 on internal tools |
Shipping Info
Package Weight
0.012
