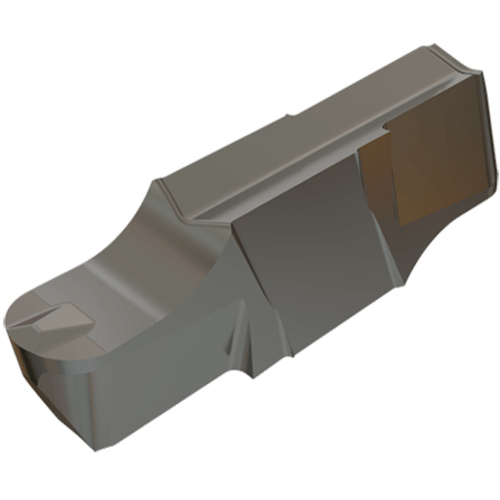

GIPI 4.00-2.0UR IC8250
Grooving Insert; 0.157″ CW ; Carbide ; IC8250 ; TiCN+Al2O3+TiN

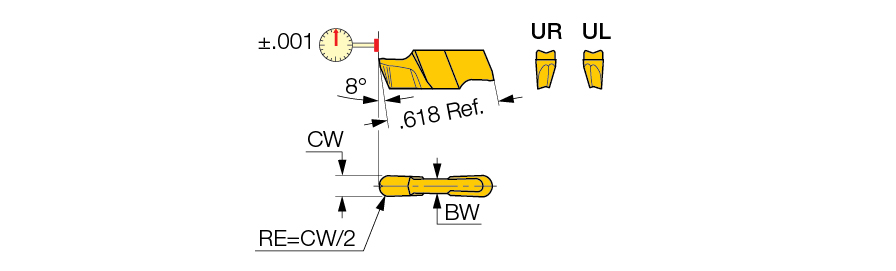

| Cutting Width (CW) | 0.157″ | Application | | Int. Profiling | Int. Undercut & Turning | |
| Corner Radius (RE) | 0.079″ | Applicable Material | | Steel | Stainless Steel | |
| Clearance Angle Major (AN) | 8 Degrees | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Chip Breaker Type | FG |
| Insert Length (INSL) | 0.618″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 1.181″ | Tool Type | Groove-Turn Precision Inserts |
| Feed | 0.0059 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC8250 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Precision inserts for internal undercutting. Double-ended, min. bore .787″. | Country of Origin | Israel |
| Remarks | Tool's pocket should be modified |
Shipping Info
Package Weight
0.011
