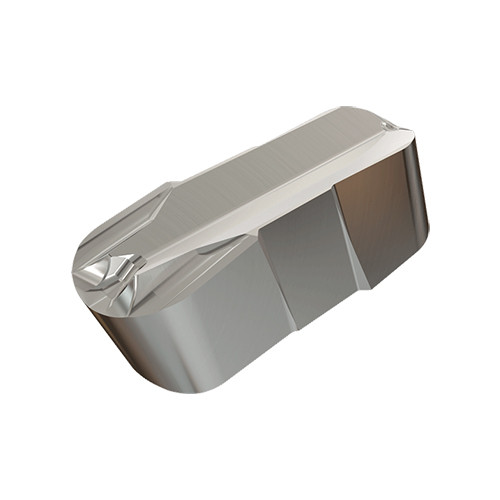

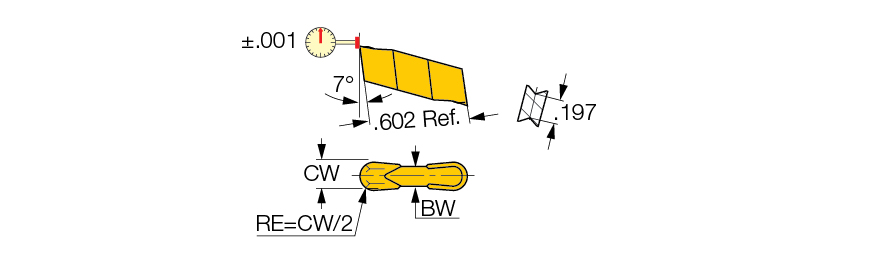

GIF 4.00E-2.00 IC20
Grooving Insert; 0.157″ CW × 0.465″ Max Depth ; Carbide ; IC20 ; Uncoated
| Cutting Width (CW) | 0.157″ | Application | | Ext. Grooving | Ext. Profiling | Int. Grooving | Int. Profiling | |
| Corner Radius (RE) | 0.079″ | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.465″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Cutting Position | External |
| Thread Pitch Maximum (TPX) | 0.344″ | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Insert Length (INSL) | 0.602″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 2.756″ | Tool Type | Groove-Turn Precision Inserts |
| Feed | 0.0134 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC20 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | CUT-GRIP precision inserts for turning and grooving at low to-medium feeds. | Country of Origin | Israel |
| Remarks | DMIN for internal machining = 2.76 |
Shipping Info
Package Length
4.00000
Package Width
1.50000
Package Height
.50000
Package Weight
0.013
