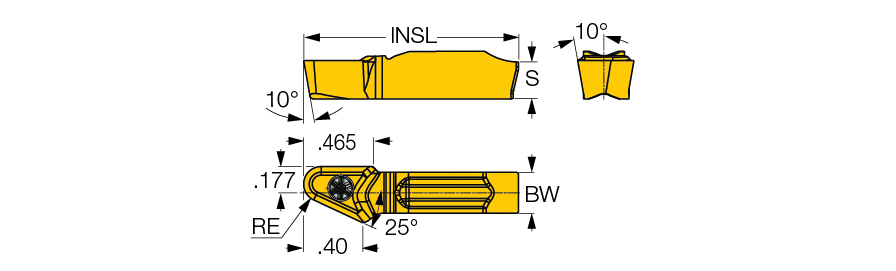

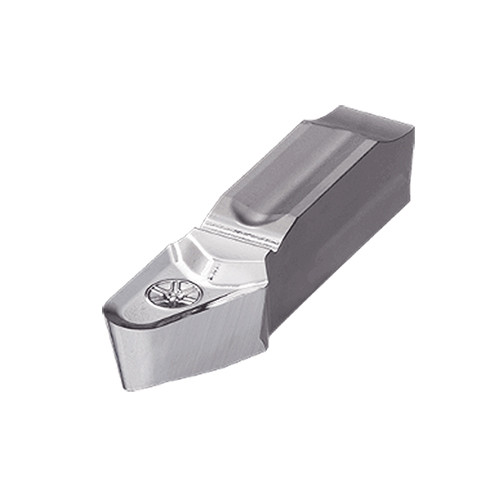

FGPAM 10S-3R-25A IC20
Grooving Insert; FGPAM 10S-3R-25A IC20 × 0.323″ Thickness ; Carbide ; Uncoated
| Cutting Width (CW) | 0″ | Application | | Ext. Turning Aluminum Wheels | Int. Machining Aluminum Wheels | |
| Corner Radius (RE) | 0.1181″ | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 10 Degrees | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Thickness (S) | 0.323″ | Measurement Type | Inch |
| Insert Length (INSL) | 1.437″ | Tool Type | Groove Turn AL,HTA Inserts Inserts |
| Feed | 0.0283 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC20 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | V-shaped inserts for machining aluminum wheels | Country of Origin | Israel |
Shipping Info
Package Weight
0.061
