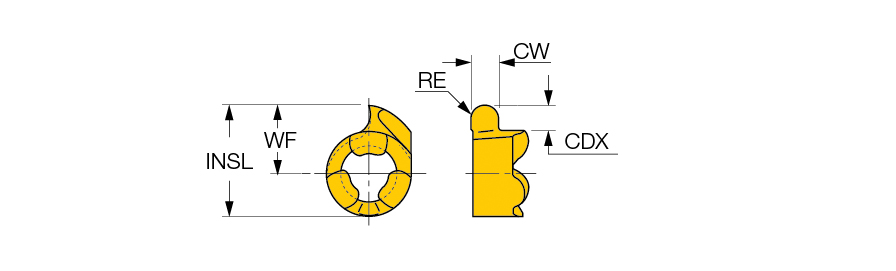

GIQR 8-3.00-R150 IC528
Grooving Insert; 0.118″ CW × 0.059″ Max Depth ; Carbide ; IC528 ; TiCN+TiN
| Cutting Width (CW) | 0.118″ | Application | | Int. Boring and Profiling | Int. Grooving | Int. Profiling | |
| Corner Radius (RE) | 0.059″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.059″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.306″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.315″ | Tool Type | Groove-Turn Precision Inserts |
| Feed | 0.002 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC528 | Cutting Edge Length (L) | 0.401″ |
| Shape | Special | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Precision ground single-ended full radius inserts for internal grooving and profiling | Country of Origin | Israel |
Shipping Info
Package Weight
0.005
