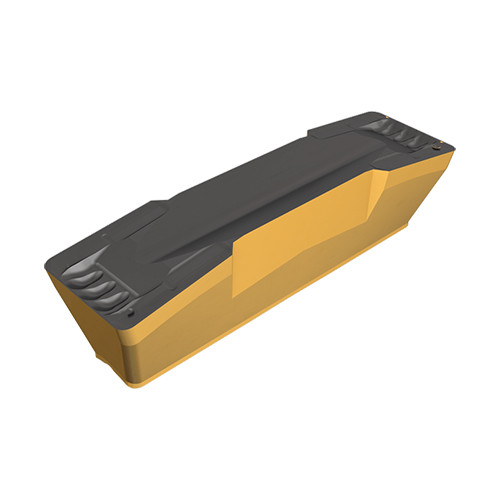

GDMY 808 IC8250
Grooving Insert; 0.315″ CW × 1.063″ Max Depth × 0.252″ Thickness ; Carbide ; IC8250 ; TiCN+Al2O3+TiN

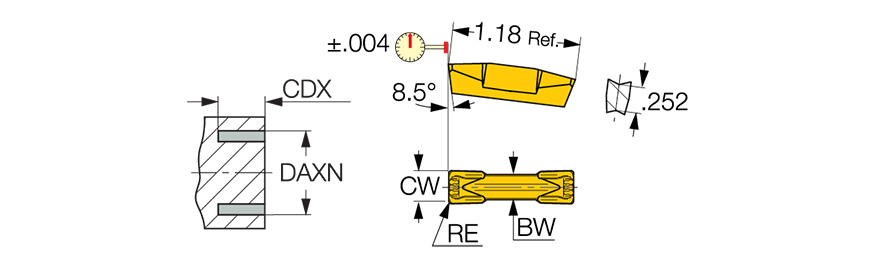

| Cutting Width (CW) | 0.315″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Groove & Turn | Int. Grooving | |
| Corner Radius (RE) | 0.031″ | Applicable Material | | Steel | Stainless Steel | |
| Cutting Depth Maximum (CDX) | 1.063″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Cutting Position | External |
| Thread Pitch Maximum (TPX) | 0.344″ | Axial Groove Outside Diameter Minimum (DAXN) | 1.97″ |
| Insert Thickness (S) | 0.252″ | Measurement Type | Inch |
| Insert Length (INSL) | 1.181″ | Tool Type | Groove-Turn Utility Inserts |
| Feed | 0.022 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC8250 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Utility, double-ended inserts. Used for heavy duty turning, profiling and grooving. Maximum machining depth is 1.063″. | Country of Origin | Israel |
| Remarks | DMIN for internal machining = 2.56 |
Shipping Info
Package Length
5.50000
Package Width
2.50000
Package Height
.57800
Package Weight
0.043
