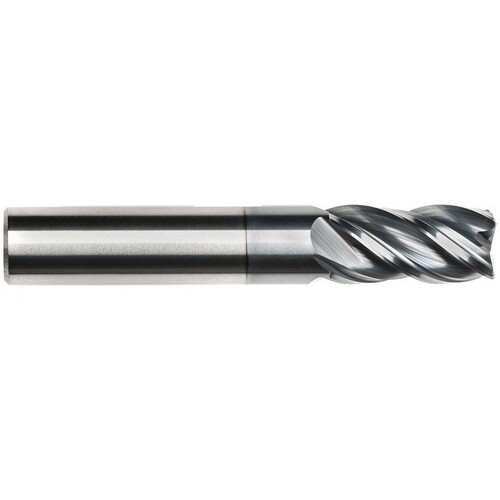

3/8X7/8X2-1/2 4FL RR M924
SQ End Mill; 3/8″ Dia. × 7/8″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; None RE ; None RE ; 4 FL ; 3″ LBS ; Carbide ; AlCrNX ; Series M924-SQ
| Cutting Diameter (DC) | 3/8″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Usable Length (LU) | 3″ |
| Depth of Cut Maximum (APMX) | 7/8″ | Corner Radius (RE) | None |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Variable Index |
| Coating | AlCrNX | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.375″ |
| Flute Helix Angle (FHA) | Variable | Series/List # | M924-SQ |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | None |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
2.90000
Package Width
.60000
Package Weight
0.15
