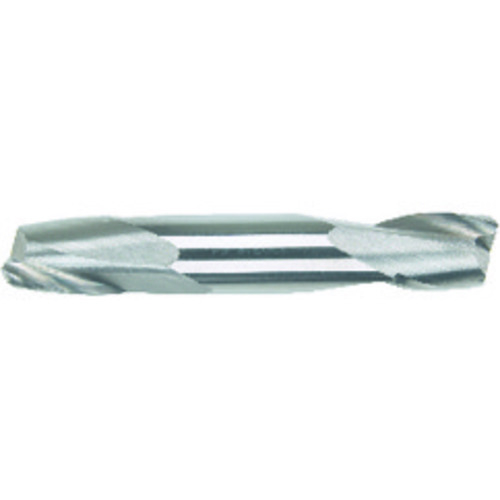

5947 3/32 × 1/8 2FL DE
SQ End Mill; 3/32″ Dia. × 3/16″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 2 FL ; 3/16″ LBS ; Carbide ; Uncoated ; Series 5896
| Cutting Diameter (DC) | 3/32″ | Usable Length (LU) | 3/16″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 3/16″ | Tool Type | Double End |
| Overall Length (OAL) | 1-1/2″ | Length Group | Stub |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Finishing |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.0938″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5896 |
| End Shape | Square | Trade Name | SOLID MASTER |
Product Features
| Remarks | •Solid Carbide 2-Flute Double End Mills •Uncoated Stub Length | Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.37500
Package Weight
0.013
