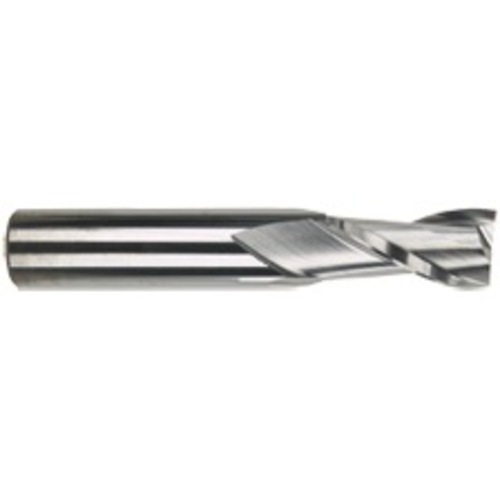

1/2″ × 1/2″ × 1″ × 3″ 2 Flute Single End Carbide Finishing Center Cutting End Mill-TiN
SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 2 FL ; Carbide ; TiN ; Series 5944G
| Cutting Diameter (DC) | 1/2″ | Usable Length (LU) | 1″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 1″ | Tool Type | Single End |
| Overall Length (OAL) | 3″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiN | Style | Finishing |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.500″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Square | Series/List # | 5944G |
Product Features
| Remarks | •Solid Carbide 2-Flute Single End Mills •TiN Coated Regular Length | Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.50000
Package Weight
0.28
