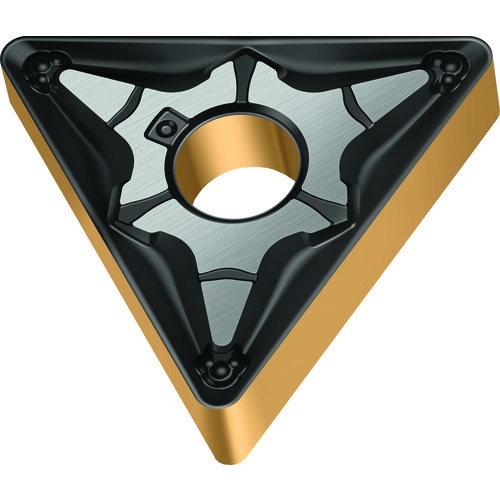

TNMG160412-MP5 WPP10G
Turning Insert; Triangle ; 16.498 mm Length × 9.525 mm IC × 1.2 mm Corner Radius ; WPP10G ; Carbide ; | Al2O3 | TiN | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Min D.O.C. | 1 mm |
| Insert Style | TNMG | Depth of Cut Maximum (APMX) | 4 mm |
| Corner Radius (RE) | 1.2 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 160412 | Number of Cutting Edges | 6 |
| Cutting Edge Length (L) | 16.498 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.763 mm | Chip Breaker Type | MP5 |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | Triangle |
| Coating | | Al2O3 | TiN | TiCN | | Cutting Depth Maximum (CDX) | 4 mm |
| Grade | WPP10G | Cutting Edge Effective Length (LE) | 16.498 mm |
| Fixing Hole Diameter (D1) | 3.81 mm | Model No | TNMG160412-MP5 WPP10G |
| Tool Type | Turning Insert |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.015
