F4042.W16.016.Z02.08

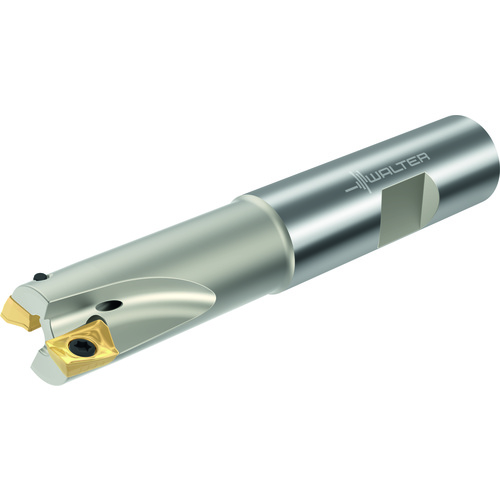

Indexable End Mill; 16 mm Dia. × 8 mm LOC × 16 mm Shank Dia. × 90 mm OAL ; Weldon Shank ; Series F4042
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC/DCX) | 16 mm | Connection Diameter Machine Side (DCONMS) | 16 mm |
| Cutting Diameter (DC) | 16 mm | Head Length (LH) | 41 mm |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 8 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 90 mm | Series/List # | F4042 |
| Shank Type | Weldon |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
0.272
