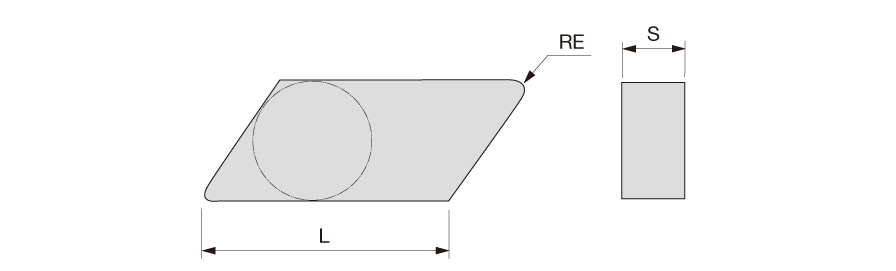

KNMX160405R-S1 T9015
Turning Insert; 60 Triangle ; 0.776″ Length × 3/8″ IC × 0.02″ Corner Radius ; T9015 ; Carbide ; Fine columnar TiCN+Al2O3
| Applicable Material | | Steel | | Min D.O.C. | 0.0039″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0197″ |
| Insert Style | TPGH | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Corner Radius (RE) | 0.02″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Size | 321 | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 0.776″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | S1 |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | Fine columnar TiCN+Al2O3 | Shape | 60° Triangle |
| Grade | T9015 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.1772″ | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Negative relief angle, 55deg parallelogram insert, for finishing | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.306
