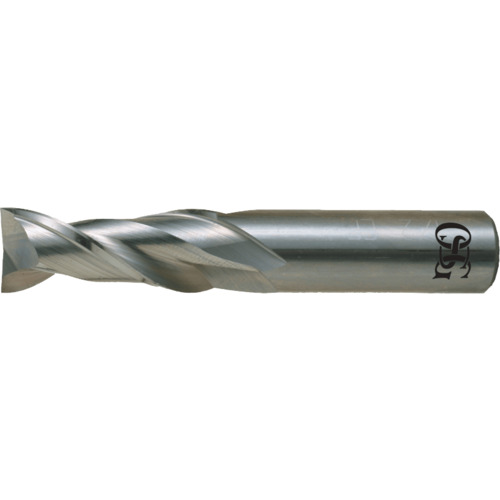

7/32″ Dia. × 1/4″ Shank × 3/4″ DOC × 2-1/2″ OAL, Carbide, Bright, 2 Flute, Corner Radius, Solid End Mill
SQ End Mill; 7/32″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 0.02″ RE ; 2 FL ; Carbide ; Uncoated ; Series 2022
| Cutting Diameter (DC) | 7/32″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 0.02″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | Center Cut |
| Overall Length (OAL) | 2-1/2″ | Style | Corner Radius |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.2188″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | 2022 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.45000
Package Width
.75000
Package Weight
0.065
