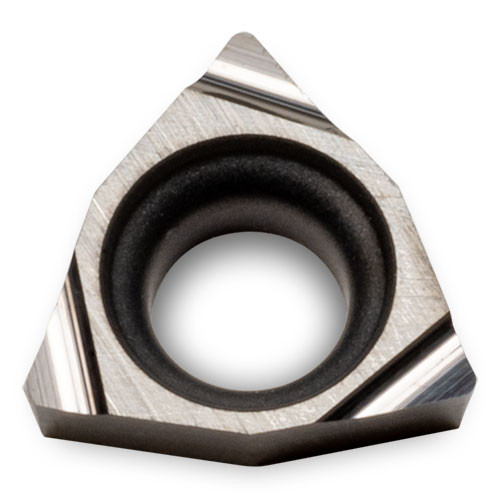

WCGT020104L TT9030
Turning Insert; 60 Triangle ; 0.086″ Length × 0.156″ IC × 0.016″ Corner Radius ; TT9030 ; Carbide ; TiAlN
| Insert Style | WCGT | Min. Turning Feed (ft(min)) | 0.0039″ |
| Corner Radius (RE) | 0.016″ | Max. Turning Feed (ft(max)) | 0.0059″ |
| Insert Size | 020104 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.086″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.063″ | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 0.156″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiAlN | Series/List # | ISOI |
| Grade | TT9030 | Body Material | Carbide |
| Min D.O.C. | 0.016″ | Model No | 8866423 |
| Depth of Cut Maximum (APMX) | 0.079″ |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.003
