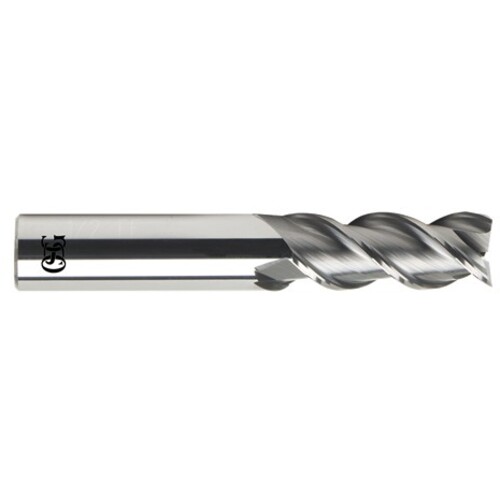

1/2″ Dia. × 1/2″ Shank × 1-1/4″ DOC × 3″ OAL, Carbide, Bright, 3 Flute, 30° Helix, Corner Radius, Solid End Mill
SQ End Mill; 1/2″ Dia. × 1-1/4″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 3 FL ; Carbide ; Uncoated ; Series 2042
| Cutting Diameter (DC) | 1/2″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Usable Length (LU) | 1-1/4″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Corner Radius (RE) | 0.06″ |
| Overall Length (OAL) | 3″ | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Style | Corner Radius |
| Coating | Uncoated | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 2042 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
Product Features
| Remarks | •Carbide end mill for aluminum, aluminum alloys and copper alloys •Stub Length •3 Flute •Bright finish. | Country of Origin | USA |
Shipping Info
Package Length
3.45000
Package Width
.75000
Package Weight
0.245
