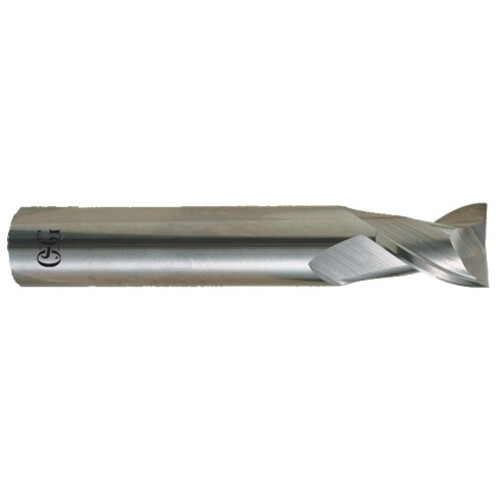

5/8″ Dia. × 5/8″ Shank × 3/4″ DOC × 3-1/2″ OAL, Carbide, Bright, 2 Flute, 30° Helix, Corner Radius, Solid End Mill
SQ End Mill; 5/8″ Dia. × 3/4″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 2 FL ; Carbide ; Uncoated ; Series 2021
| Cutting Diameter (DC) | 5/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Usable Length (LU) | 3/4″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 3-1/2″ | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Style | Corner Radius |
| Coating | Bright | Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 2021 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
Product Features
| Remarks | •Carbide end mill for aluminum, aluminum alloys and copper alloys •Stub Length •2 Flute •Bright finish. | Country of Origin | Japan |
Shipping Info
Package Length
4.00000
Package Width
1.00000
Package Height
.90000
Package Weight
0.52
