F2330.UW15.019.Z02.01

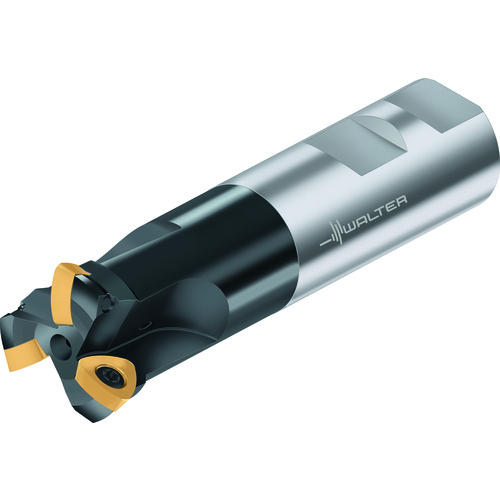

Indexable End Mill; 9.042 mm Dia. × 1 mm LOC × 15.875 mm Shank Dia. × 95.25 mm OAL ; Weldon Shank ; Series F2330
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC/DCX) | 9.042 mm | Shank Type | Weldon |
| Cutting Diameter (DC) | 9.042 mm | Connection Diameter Machine Side (DCONMS) | 15.875 mm |
| Cutting Item Count (CICT) | 2 | Head Length (LH) | 46.73 mm |
| Depth of Cut Maximum (APMX) | 1 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 95.25 mm | Series/List # | F2330 |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
0.353
