1/2XR0.060X3.25 4FL

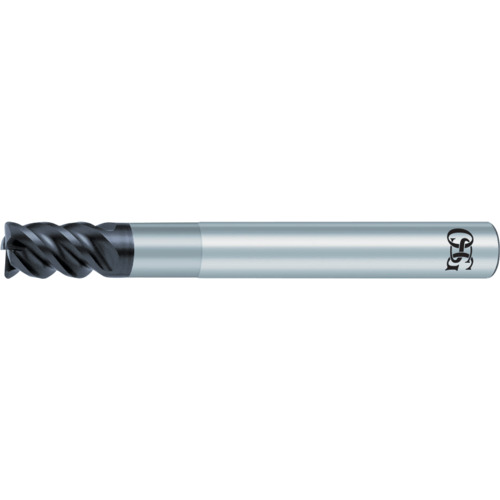

SQ End Mill; 1/2″ Dia. × 1/2″ LOC × 1/2″ Shank Dia. × 3-1/4″ OAL ; 0.06″ RE ; 0.06″ RE ; 4 FL ; 1/2″ LBS ; Carbide ; AlTiCrSiN ; Series 4471
| Cutting Diameter (DC) | 1/2″ | Usable Length (LU) | 1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 0.06″ |
| Depth of Cut Maximum (APMX) | 1/2″ | Neck Diameter (DN) | 0.488″ |
| Overall Length (OAL) | 3-1/4″ | Neck Length (LN) | 1-1/2″ |
| Cutting Edge Material | Carbide | Tool Type | High Performance |
| Coating | AlTiCrSiN | Style | Corner Radius |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 4471 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
Product Features
| Remarks | •High performance micrograin carbide •WXS coating •Corner radius •For high feed milling •Recommended for carbon steels, alloy steels, tool steels, hardened steels up to 65 HrC and cast iron. | Country of Origin | Japan |
Shipping Info
Package Length
3.45000
Package Width
1.00000
Package Height
.90000
Package Weight
0.34
