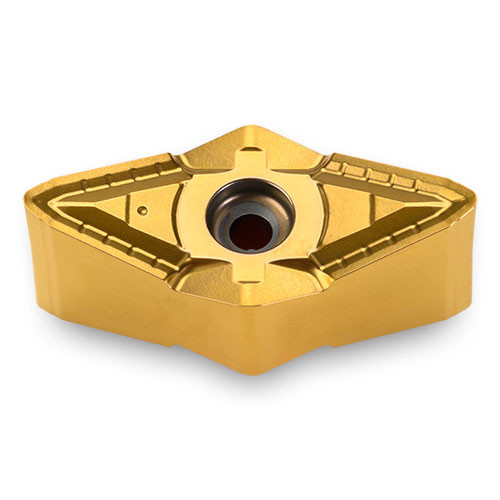

ZNMV3.36.32BS TT3020
Turning Insert; 60 Triangle × 0.413″ IC × 0.031″ Corner Radius
| Insert Style | ZNMV | Number of Cutting Edges | 4 |
| Corner Radius (RE) | 0.031″ | Cutting Direction (HAND) | Neutral |
| Insert Size | 3.36.32 | Quantity | 10 |
| Insert Thickness (S) | 0.394″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 0.413″ | Shape | 60° Triangle |
| Min D.O.C. | 0.02″ | Series/List # | ISOI |
| Depth of Cut Maximum (APMX) | 0.1″ | Body Material | Carbide |
| Min. Turning Feed (ft(min)) | 0.02″ | Model No | 8866423 |
| Max. Turning Feed (ft(max)) | 0.04″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.035
