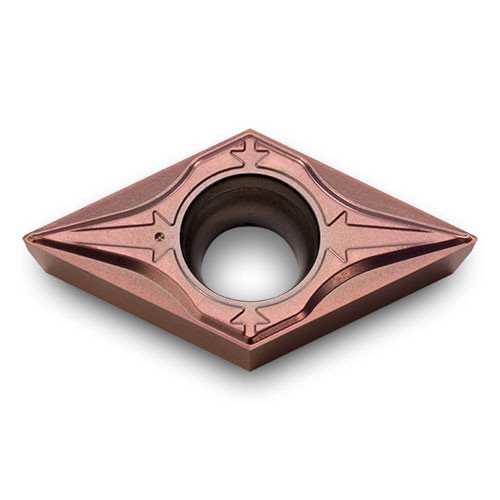

DCGT32.50M-SM-F TT4430
Turning Insert; 60 Triangle ; 0.475″ Length × 3/8″ IC × 0.004″ Corner Radius
| Insert Style | DCGT | Max. Turning Feed (ft(max)) | 0.0047″ |
| Corner Radius (RE) | 0.004″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 443 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 0.475″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.156″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 55 Degrees | Shape | 60° Triangle |
| Fixing Hole Diameter (D1) | 0.173″ | Series/List # | ISOI |
| Min D.O.C. | 0.001″ | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.059″ | Model No | 8866423 |
| Min. Turning Feed (ft(min)) | 0.0008″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.013
