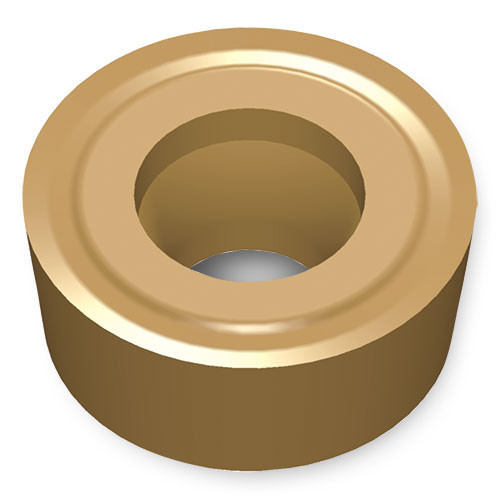

RCMT120400PC TT8125B
Turning Insert; 60 Triangle × 0.472″ IC
| Insert Style | RCMT | Max. Turning Feed (ft(max)) | 0.024″ |
| Insert Size | 120400 | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 0.472″ | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.173″ | Shape | 60° Triangle |
| Min D.O.C. | 0.051″ | Series/List # | ISOI |
| Depth of Cut Maximum (APMX) | 0.177″ | Body Material | Carbide |
| Min. Turning Feed (ft(min)) | 0.008″ | Model No | 8866423 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.014
