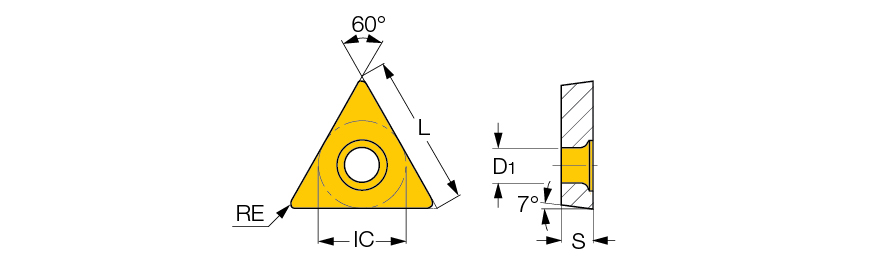

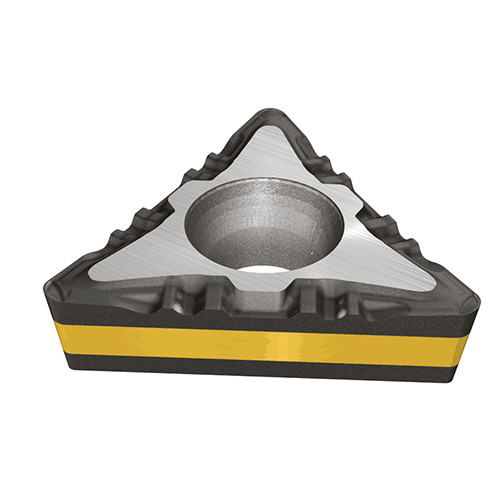

TCMT 3-1-F3P IC807
Turning Insert; 60 Triangle ; 0.65″ Length × 3/8″ IC × 0.016″ Corner Radius ; IC807 ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.004″ |
| Application | | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 90° Approach | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Depth of Cut Maximum (APMX) | 0.067″ |
| Insert Style | TCMT | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Corner Radius (RE) | 0.016″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Size | 3-1 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.65″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.156″ | Chip Breaker Type | F3P |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiAlN+TiN | Series/List # | ISOI |
| Grade | IC807 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ | Model No | 8866423 |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Triangular positive flank inserts for semi-finishing & finishing of steel. Low cutting forces due to sharp cutting edge and a positive rake angle, providing very reliable performance and excellent tool life. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.014
