5XR0.5X90 4FL EXOCARB

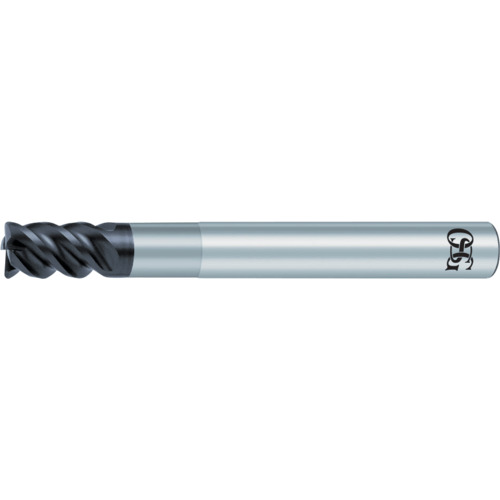

SQ End Mill; 5 mm Dia. × 8 mm LOC × 6 mm Shank Dia. × 90 mm OAL ; 0.5 mm RE ; 4 FL ; 25 mm LBS ; Carbide ; AlTiCrSiN ; Series 4571
| Cutting Diameter (DC) | 5 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 25 mm |
| Depth of Cut Maximum (APMX) | 8 mm | Corner Radius (RE) | 0.5 mm |
| Overall Length (OAL) | 90 mm | Tool Type | Single-End |
| Cutting Edge Material | Carbide | Style | Corner Radius |
| Coating | AlTiCrSiN | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | 4571 |
| Shank Type | Round |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.65000
Package Width
.55000
Package Weight
0.085
