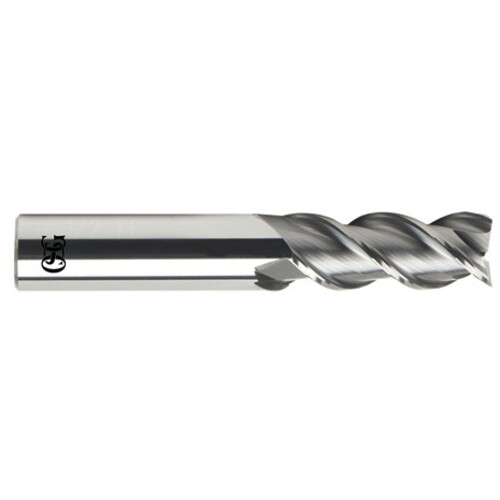

3/4 × 3/4 × 1-5/8 × 4 3 Fl Carbide .120 C/R Center Cutting End Mill - Bright
SQ End Mill; 3/4″ Dia. × 1-5/8″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; Uncoated ; Series 2042
| Cutting Diameter (DC) | 3/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Corner Radius (RE) | 0.12″ |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Tool Type | Center Cut |
| Overall Length (OAL) | 4″ | Style | Corner Radius |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.75″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 2042 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.5
