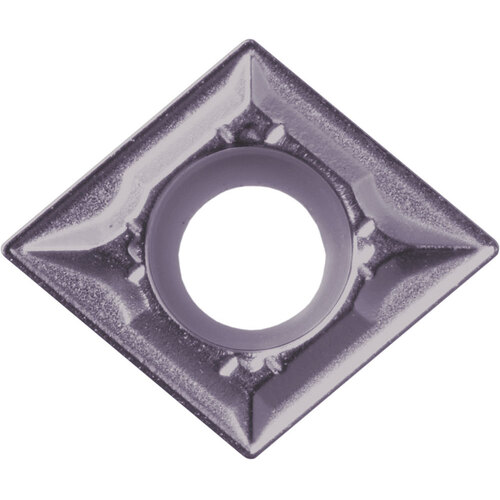

CCMT 21505GK PR1725 PVD
Turning Insert; 80 Diamond × 1/4″ IC × 0.008″ Corner Radius ; PR1725 ; Carbide ; MEGACOAT NANO PLUS
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.1102″ |
| Application | Boring | External Turning | Facing | Internal Facing | Tool Type | Turning Insert |
| Insert Style | CCMT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.008″ | Number of Cutting Edges | 2 |
| Insert Size | 21505 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/32″ | Chip Breaker Type | GK |
| Inscribed Circle Diameter (IC) | 1/4″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Diamond |
| Coating | MEGACOAT NANO PLUS | Series/List # | ISOI |
| Grade | PR1725 | Model No | 8863333 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.052
