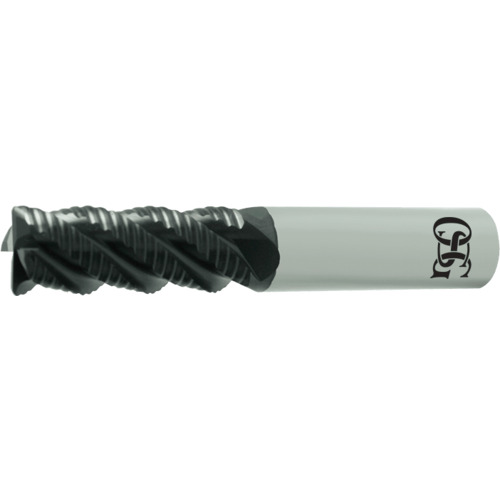

5/8″ Dia. × 5/8″ Shank × 3/4″ DOC × 3″ OAL, Carbide, TiAlN, Center Cutting, 4 Flute, 40° Helix, Round, Corner Radius, Solid End Mill
Corner Radius End Mill; 5/8″ Dia. × 3/4″ LOC × 5/8″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; AlTiN ; Series 2015
| Cutting Diameter (DC) | 5/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Application | Roughing |
| Depth of Cut Maximum (APMX) | 3/4″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 3″ | Style | Roughing |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.625″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 2015 |
| Flute Helix Angle (FHA) | 40 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.00000
Package Width
1.00000
Package Height
.90000
Package Weight
.4650
