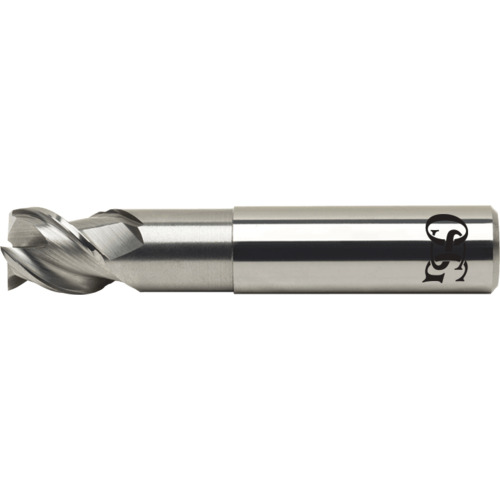

1/4″ Dia. × 1/4″ Shank × 1/4″ DOC × 2-1/2″ OAL, Carbide, Bright, 3 Flute, Corner Radius, Solid End Mill
SQ End Mill; 1/4″ Dia. × 1/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 0.06″ RE ; 0.06″ RE ; 3 FL ; Carbide ; Uncoated ; Series 2043
| Cutting Diameter (DC) | 1/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 0.06″ |
| Depth of Cut Maximum (APMX) | 1/4″ | Tool Type | Center Cut |
| Overall Length (OAL) | 2-1/2″ | Style | Corner Radius |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.25″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 2043 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.15000
Package Width
.55000
Package Weight
0.06
