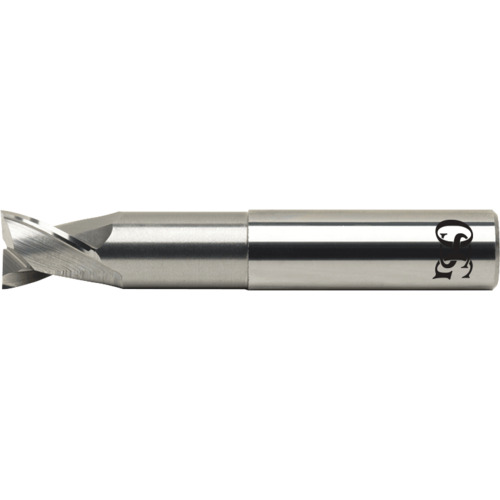

3/4 × 3/4 × 3/4 × 6 2 Fl Carbide .090 C/R Center Cutting End Mill - Bright
Corner Radius End Mill; 3/4″ Dia. × 3/4″ LOC × 3/4″ Shank Dia. × 6″ OAL ; 2 FL ; Carbide ; Uncoated ; Series 2024
| Cutting Diameter (DC) | 3/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Corner Radius (RE) | 0.09″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | Center Cut |
| Overall Length (OAL) | 6″ | Style | Corner Radius |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.75″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | 2024 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.09″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
6.20000
Package Width
1.15000
Package Height
1.00000
Package Weight
1.3450
