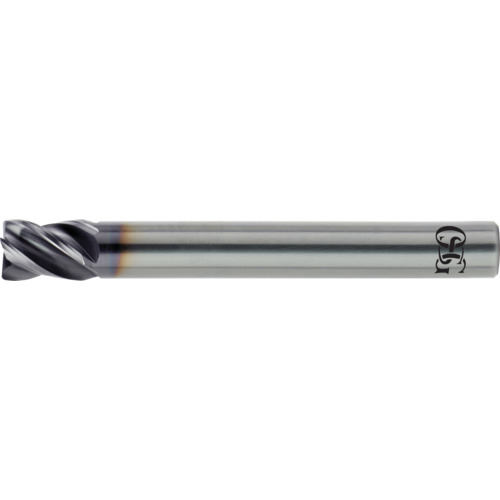

1″ Dia. × 1″ Shank × 1-1/8″ DOC × 6″ OAL, Carbide, TiAlN, 4 Flute, .020 Corner Chamfer, Solid End Mill
Corner Chamfer End Mill; 1″ Dia. × 1-1/8″ LOC × 1″ Shank Dia. × 6″ OAL ; 4 FL ; Carbide ; AlTiN ; Series VG464
| Cutting Diameter (DC) | 1″ | End Shape | Corner Chamfer |
| Connection Diameter Machine Side (DCONMS) | 1″ | Corner Radius (RE) | 0.75 mm |
| Depth of Cut Maximum (APMX) | 1-1/8″ | Corner Chamfer Width (CHW) | 0.02 |
| Overall Length (OAL) | 6″ | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Style | Corner Chamfer |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | VG464 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
6.30000
Package Width
1.40000
Package Height
1.35000
Package Weight
2.225
