3/8X1/2X4X.020 CHF 4FL EM

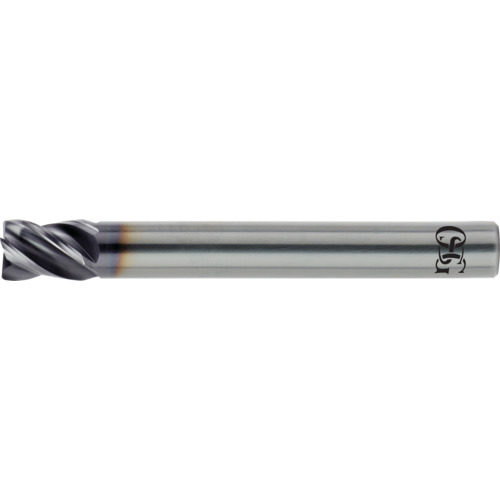

SQ End Mill; 3/8″ Dia. × 1/2″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 0.03″ RE ; 0.02″ RE ; 4 FL ; Carbide ; AlTiN ; Series VG464
| Cutting Diameter (DC) | 3/8″ | Corner Radius (RE) | 0.03″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Corner Chamfer Width (CHW) | 0.02 |
| Depth of Cut Maximum (APMX) | 1/2″ | Tool Type | High Performance |
| Overall Length (OAL) | 4″ | Style | Corner Chamfer |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.375″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | VG464 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| End Shape | Corner Chamfer |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.40000
Package Width
.75000
Package Weight
0.23
