15U1G-10015X7R01

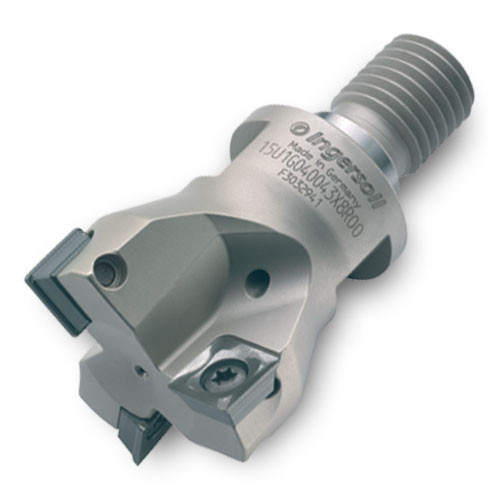

Indexable End Mill; 1″ Dia. × 0.41″ LOC ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1″ | Functional Length (LF) | 1-1/2″ |
| Cutting Diameter (DC) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.41″ | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 2 Degrees | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 15-32 Ra surface finishes when engaging wiper (WEP) Insert corners: .008″ .020″ .031″ .062″ .093″, .125″ R | Country of Origin | USA |
