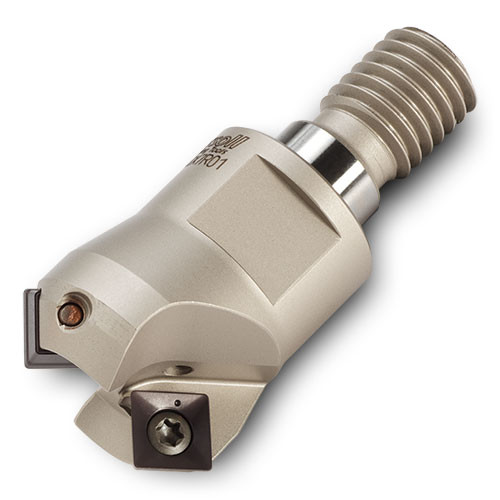

15N1E-10012X7R01
Indexable End Mill; 1″ Dia. × 0.2″ LOC ; 45 Degrees
| Cutting Diameter (DC/DCX) | 1″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Cutting Diameter (DC) | 0.578″ | Diameter | 0″ |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.2″ | Measurement Type | Inch |
| Application | | Chamfering | Slanted Shoulder & Chamfer | | Body Material | Steel |
| Weight of Item (WT) | 0.73 Kg | Hub Diameter (DHUB) | 0.82″ |
| Functional Length (LF) | 1.245″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Diameter Maximum (DCX) | 1″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.176
