12J1E-1004029R01

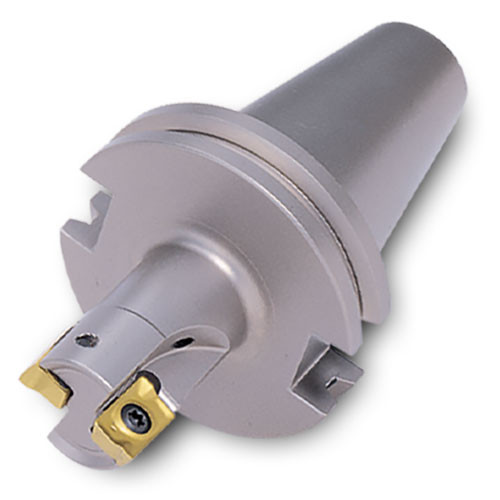

Indexable End Mill; 1″ Dia. × 0.66″ LOC × 6.69″ OAL × 2-1/2″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1″ | Usable Length (LU) | 2-1/2″ |
| Cutting Diameter (DC) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.66″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 6.69″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 6 Degrees | Body Material | Steel |
| Application | | Chamfering | Facing | Helical Interpolation | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | 32-63 Ra surface finishes when engaging integrated wiper (WEP) Insert Corner: .015″ .031″ .062″ .093″ & .125″ R. Insert with 2 Indexes | Country of Origin | Usa |
Shipping Info
Package Weight
0.006
