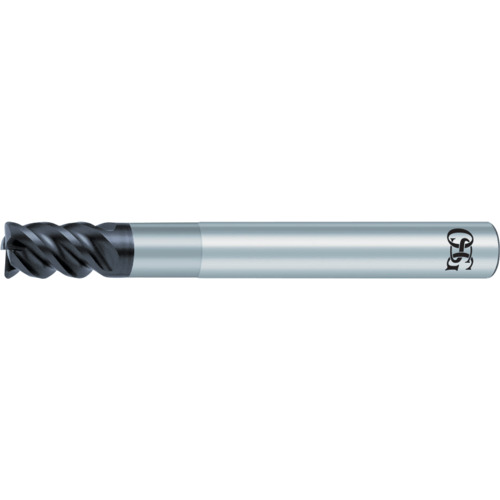

1/8″ Dia. × 1/8″ Shank × 1/8″ DOC × 2-1/4″ OAL, Carbide, WXS, 4 Flute, 45° Helix, Round, Corner Radius, Solid End Mill
Corner Radius End Mill; 1/8″ Dia. × 1/8″ LOC × 1/8″ Shank Dia. × 2-1/4″ OAL ; 4 FL ; Carbide ; AlTiCrSiN ; Series 4471
| Cutting Diameter (DC) | 1/8″ | Usable Length (LU) | 1/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 0.015″ |
| Depth of Cut Maximum (APMX) | 1/8″ | Neck Diameter (DN) | 0.12″ |
| Overall Length (OAL) | 2-1/4″ | Neck Length (LN) | 1/2″ |
| Cutting Edge Material | Carbide | Tool Type | High Performance |
| Coating | AlTiCrSiN | Style | Corner Radius |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.125″ |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 4471 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.015″ |
Product Features
| Remarks | •High performance micrograin carbide •WXS coating •Corner radius •For high feed milling •Recommended for carbon steels, alloy steels, tool steels, hardened steels up to 65 HrC and cast iron. | Country of Origin | Japan |
Shipping Info
Package Length
2.30000
Package Width
.45000
Package Weight
0.02
