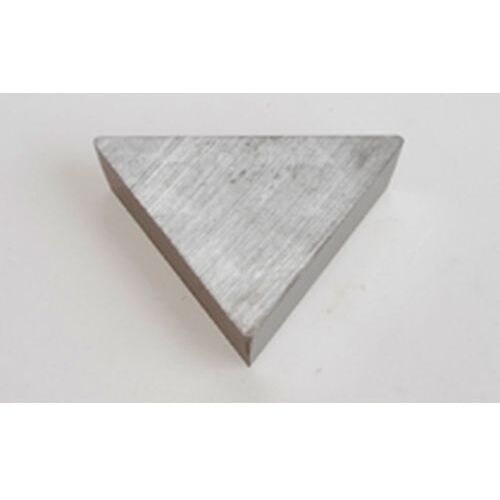

TPG 321 IC20
Turning Insert; 60 Triangle × 3/8″ IC × 1/64″ Corner Radius ; PR1725 ; Carbide ; MEGACOAT NANO PLUS
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium | Grade | PR1725 |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing | Fixing Hole Diameter (D1) | 0.1772″ |
| Insert Style | TPG | Tool Type | Turning Insert |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 321 | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | MEGACOAT NANO PLUS | Series/List # | ISOI |
Product Features
| Family Description | TPG 321 IC20 | Country of Origin | Israel |
Shipping Info
Package Length
4.00000
Package Width
1.50000
Package Height
.50000
Package Weight
0.014
